Metal Stamping of an Aluminum Alloy Drawn Basin for the Medical Industry

At Manor Tool & Manufacturing Company, we specialize in meeting the manufacturing needs of some of the most demanding industries.

Aluminum Alloy Drawn Basin

Sectors such as the medical industry require extreme precision and tight adherence to complex specifications. The project shown here highlights our ability to meet these challenges, and is an example of how skilled machinists and advanced manufacturing processes can create cost-effective precision products.

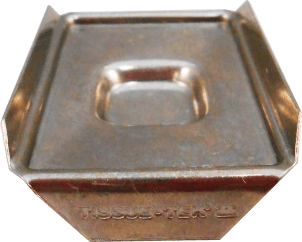

This product was designed for use as a biopsy tray, and features dimensions of 2.120” in length, 1.415” in width, and 0.033” in height. The drawn basin was created per customer specifications, which called for multiple contours, angles, and recesses, all of which required for forming the multiple geometric features of the trays. The trays are composed of 5052 aluminum, and are progressive die stamped to tolerances of ± 0.001”. The durability of the die and consistency of our processes are verified by comprehensive visual and dimensional inspections throughout manufacturing. This is further demonstrated by the 50,000 parts per year that we supply to this medical industry customer, with lead times of just 4 weeks.

If you are interested in learning more about the manufacturing capabilities that we offer the medical industry, contact us directly.

Request a Quote

Highlights of this Metal Stamping Project

Capabilities Applied/Processes:
  • Primary: Metal Stamping
  • Secondary: Deburring
Equipment Used to Manufacture Part:
  • Progressive Die
Overall Part Dimensions:
  • Length: 2.120″
  • Width: 1.415″
  • Height: 0.300″
Tightest Tolerances:
  • ±0.001”
Material Used:
  • 5052 Aluminum
Material Used:
  • Raw/Machined
In process testing/inspection performed:
  • Dimensional Inspection, Visual Inspection
Industry for Use:
  • Medical
  • 50,000/yr
Delivery/Turnaround Time:
  • 4 Weeks
Delivery Location:
  • Illinois
Standards Met:
  • Customer Specifications, 2D CAD Drawing
Product Name:
  • Base Mold
