Custom Tooling & Fabricating Services

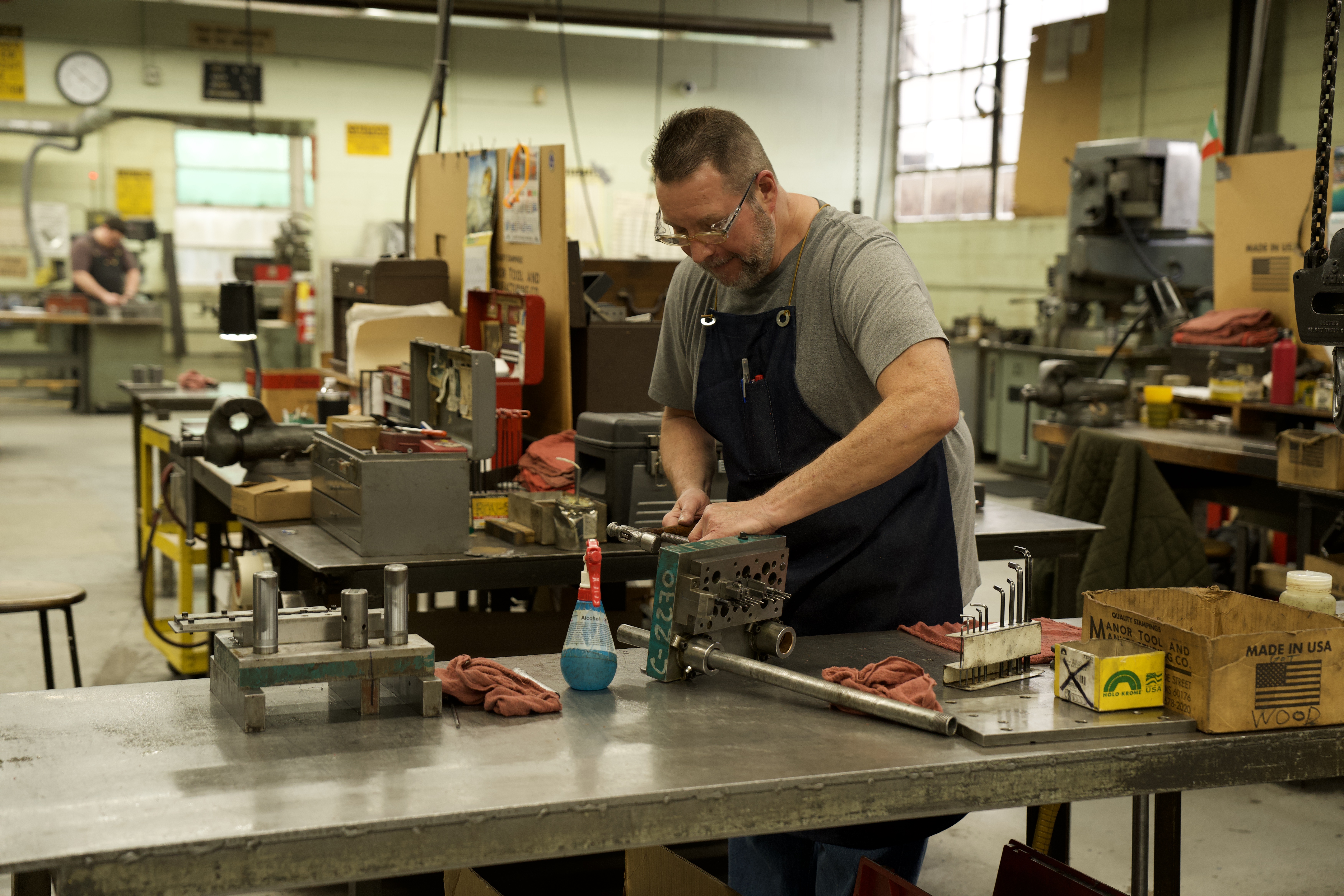

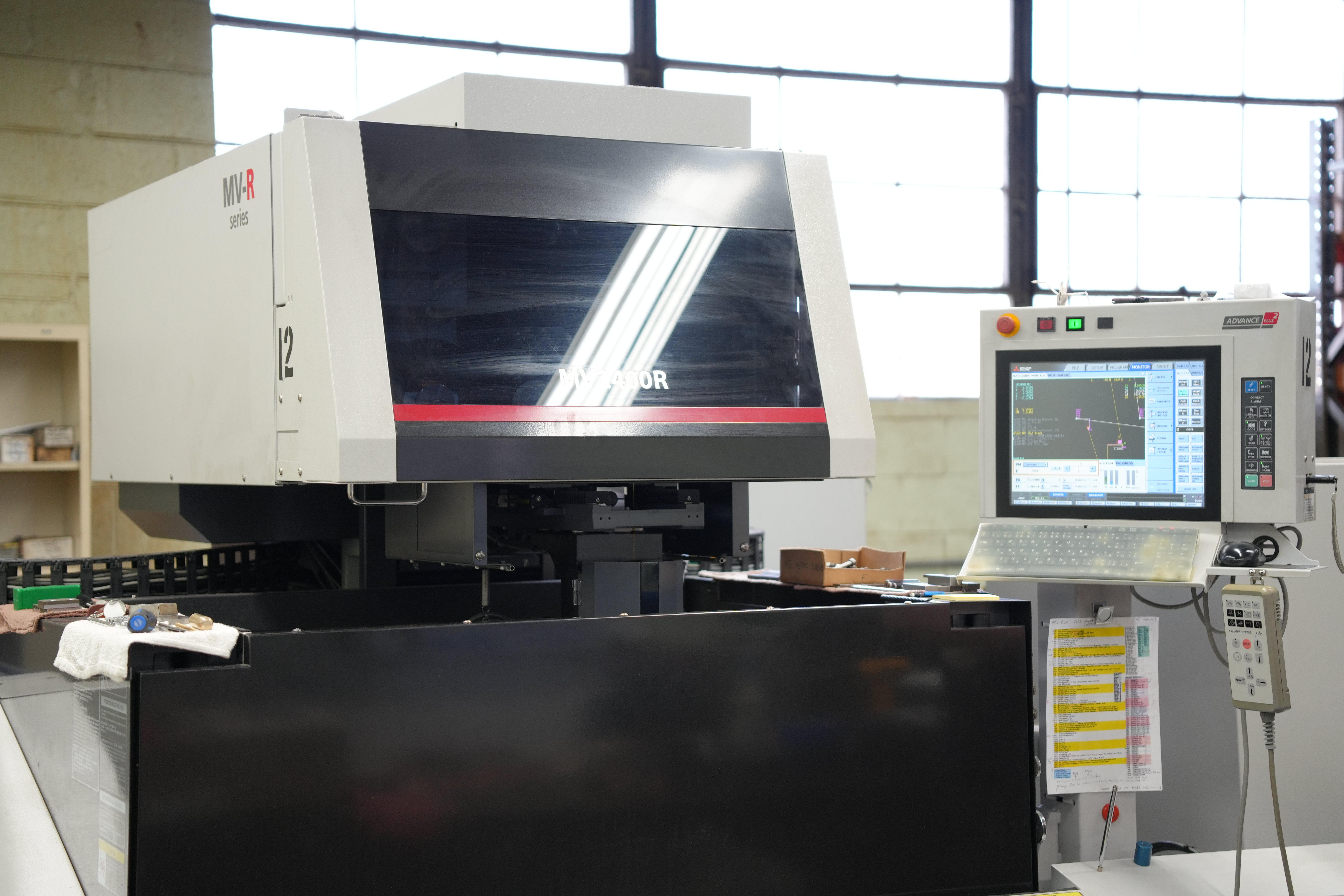

As a full-service one-stop-shop, Manor Tool & Manufacturing Company designs and builds custom tooling in-house. Our engineers develop tooling for our precision metal stamping services using our AutoCAD & Unigraphics software for tooling design operations and our MASTERCAM software for CNC machining and wire EDM operations.

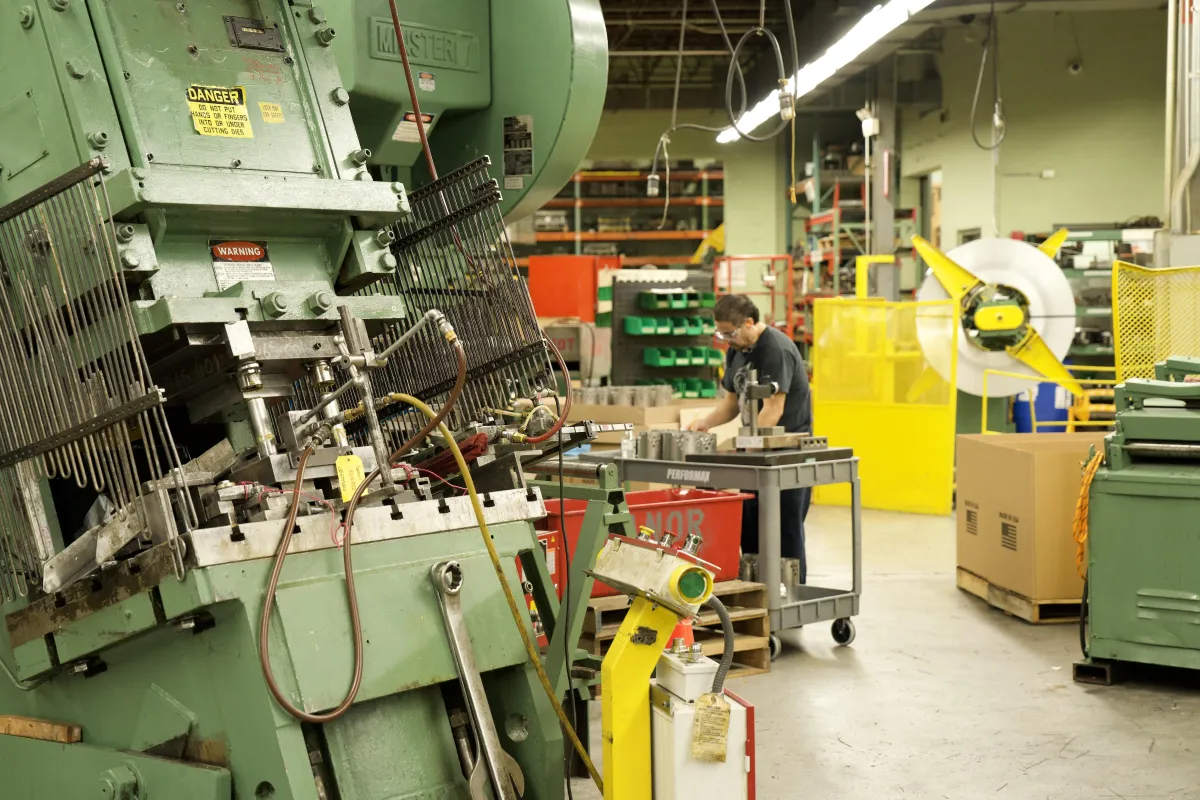

Custom Metal Stamping Dies for Stamping Services

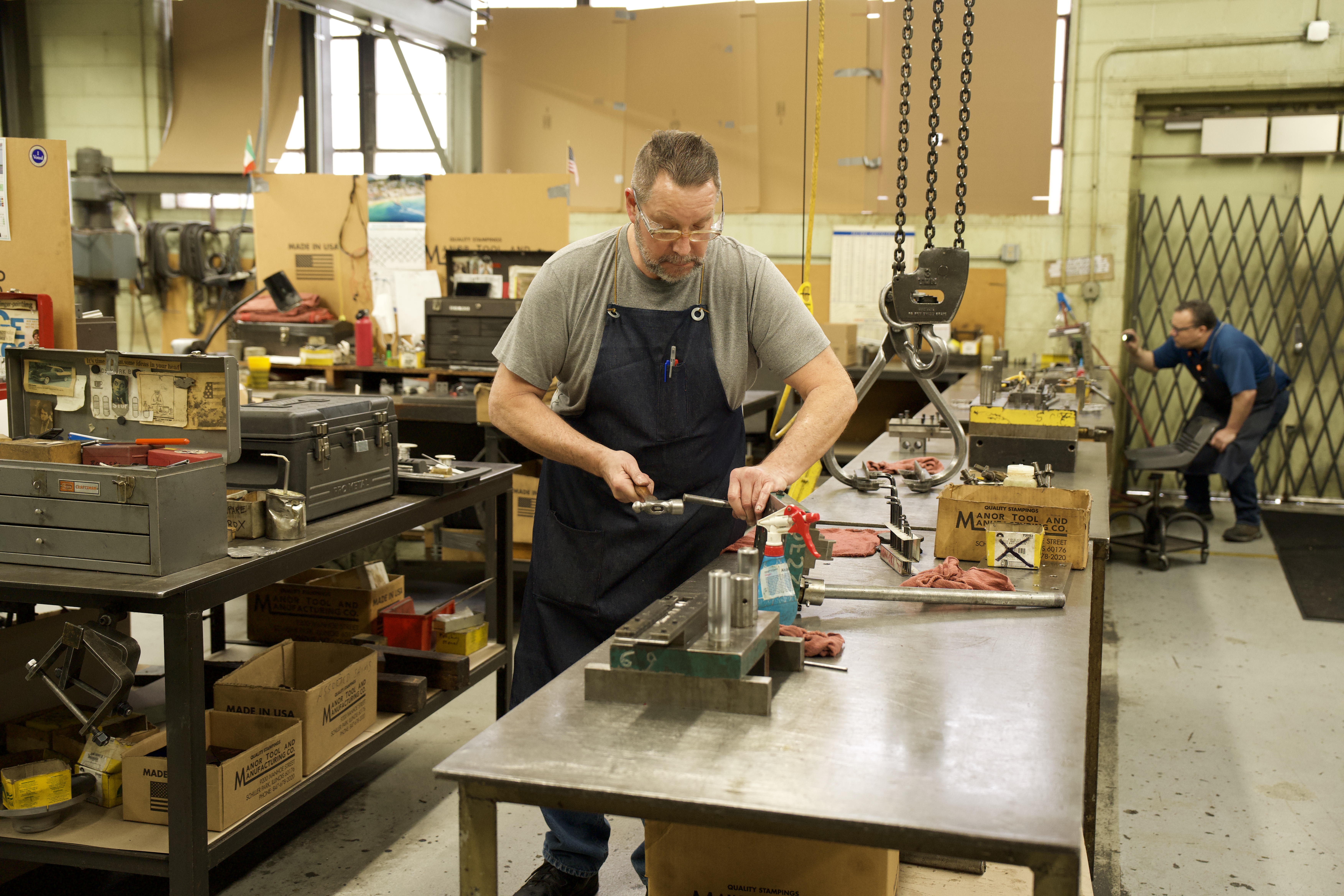

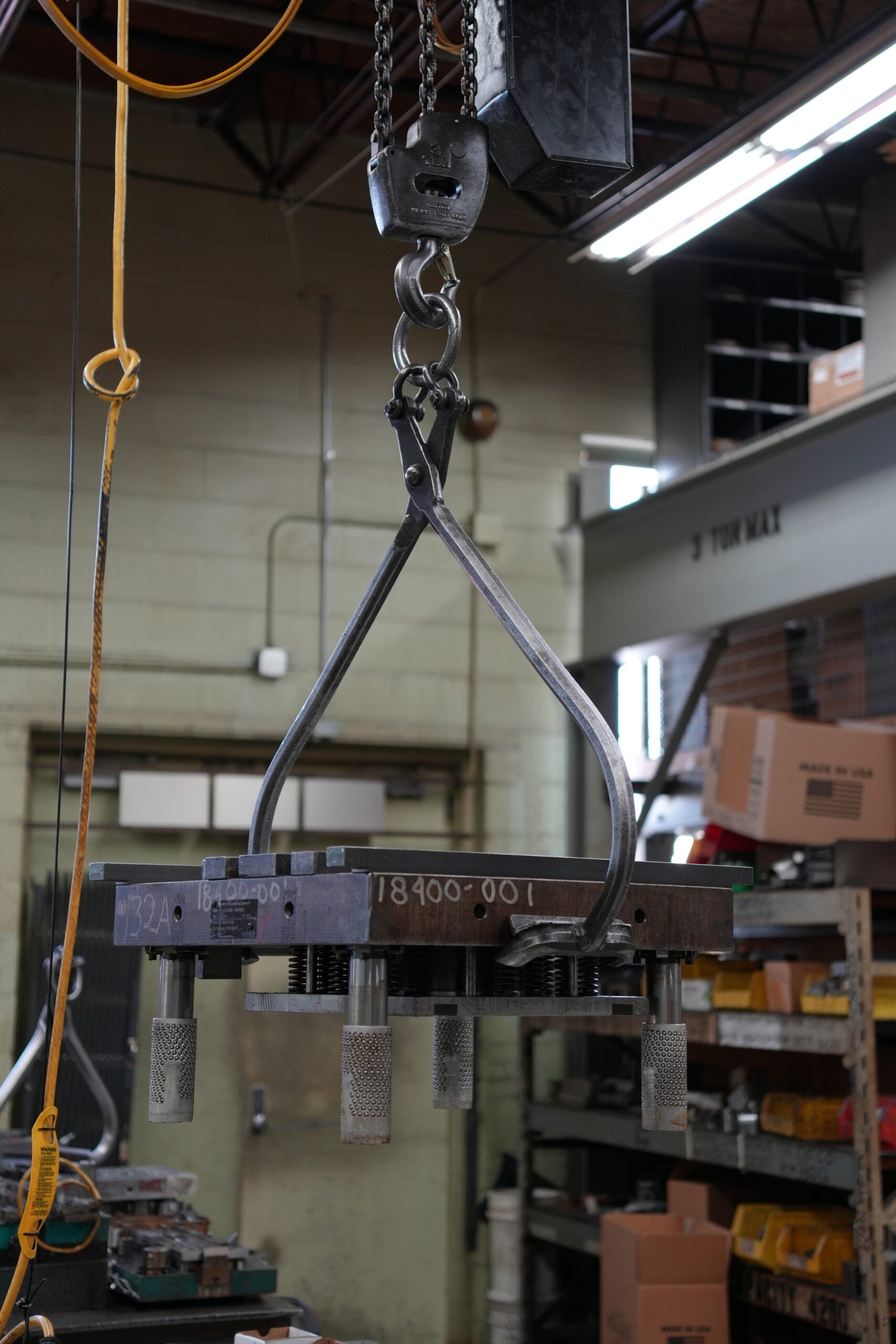

Our tooling equipment and capabilities allow us to build single and multi-station progressive dies ranging from 48 to 96 inches with a 400-ton press capacity. In addition to designing and building new tooling, we can run and repair existing tooling.

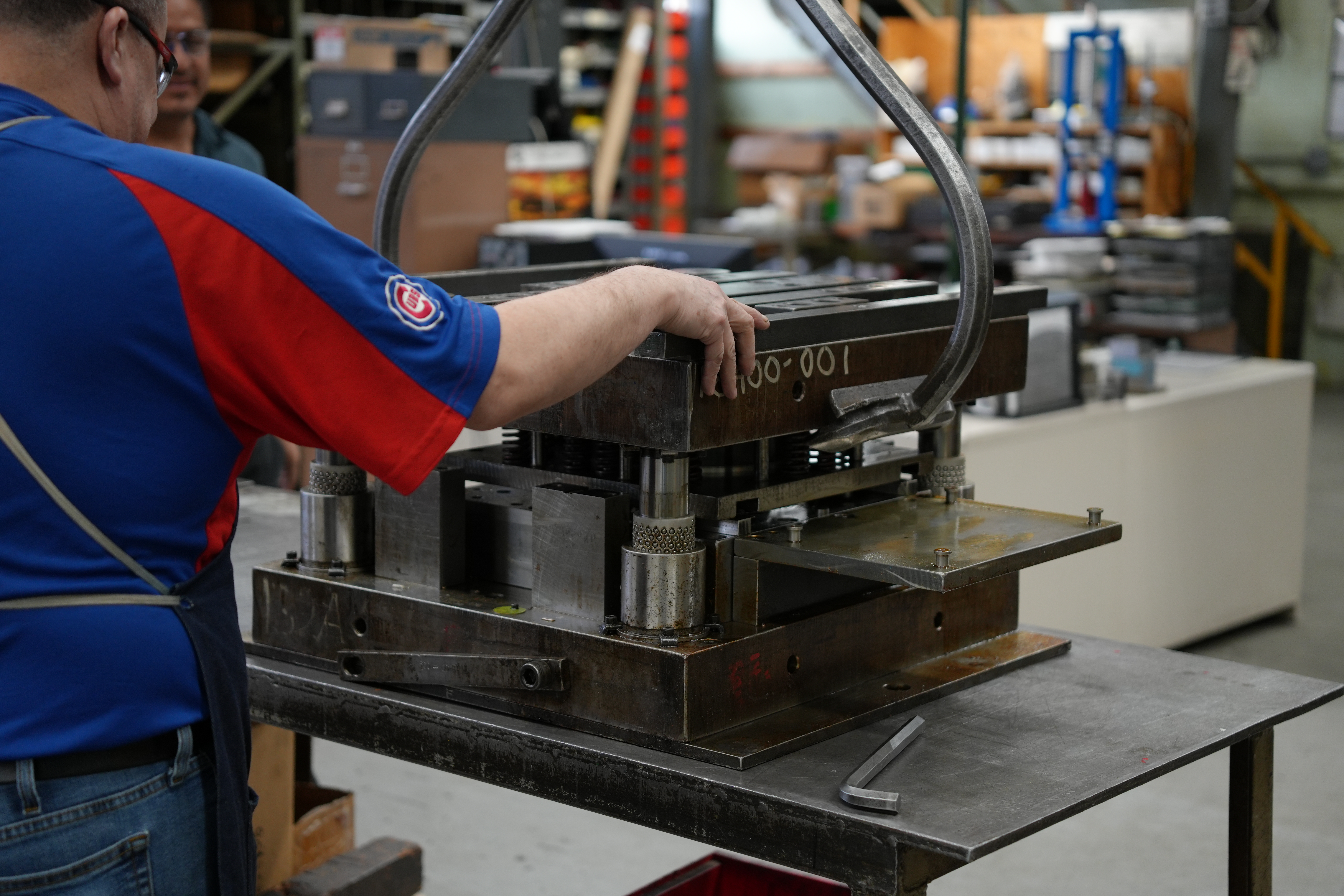

A stamping die is a precision tool used in press equipment to cut and form sheet metal into a particular shape or profile. It contains cutting and forming sections that are typically made from tool steel—a special hardenable steel—or wear-resistant materials, such as carbide or other hard metals. Depending on the part and process specifications, the die or dies employed vary significantly in size and design.

Equipped with over 60 years of stamping experience, the team at Manor Tool and Manufacturing Company has the knowledge and skills to design and create custom dies for a variety of purposes, including for the following:


Cutting is one of the most common processes performed with a stamping die. The machine operator feeds the sheet metal between the two sections of the die through a small gap referred to as the cutting clearance. The application of force to the die by the press equipment decreases the cutting clearance, ultimately stressing the metal to the point of failure and producing a cut edge with a portion referred to as the fracture zone (i.e., or break line) and a shiny portion called the cut band (i.e., shear).

Some of the most common cutting operations for which stamping dies are used include:

  • Blanking
  • Lancing
  • Notching
  • Piercing
  • Shearing
  • Trimming


Coining is a stamping operation that flattens or breaks the burr on the edges of a stamped metal part. This process smoothens the edge of the coined area of the part and adds strength to specific sections of the finished piece, eliminating the need for secondary operations such as deburring and grinding.

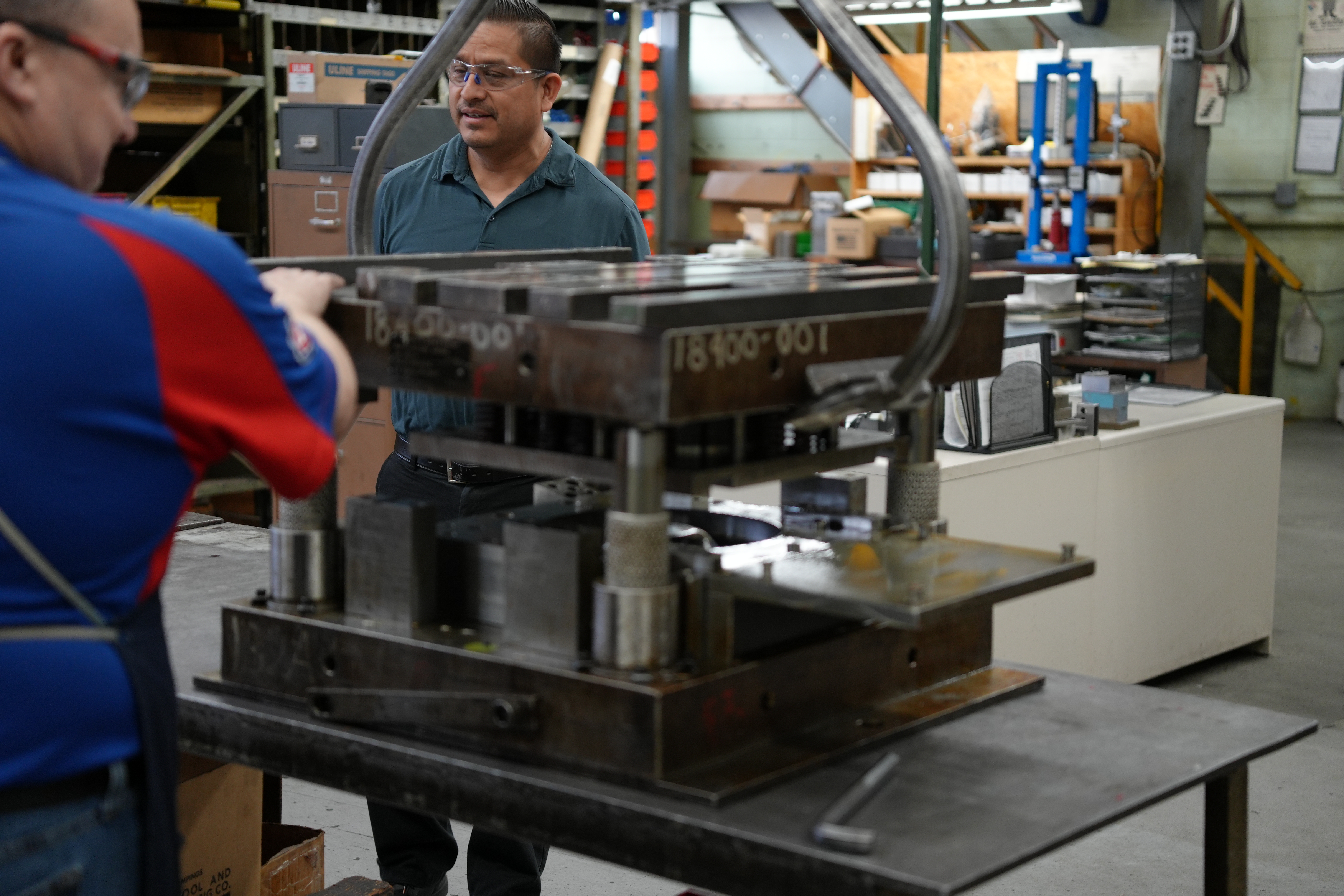

In-Die Tapping

In-die tapping is one of the most complex and complicated operations performed with stamping dies. The process offers the opportunity for significant cost-savings but requires experience and skill that only a few designers and toolmakers have acquired.


Forming dies work by applying compression, tension, or both to sheet metal in processes such as bending, drawing, flanging, and stretching. The success of the operation is dependent on the metal used. It must demonstrate mechanical characteristics that are strong enough to serve the part’s intended function and able to bend and stretch within the specified limits.

Quality Tooling From Manor Tool & Manufacturing

Manor is an ISO 9001:2015 certified company dedicated to ensuring quality in every project. Equipped with more than six decades of expertise in custom tooling for metal stampings and formed components, we will work with you to develop a plan that fits your exact needs. With fully customizable services, comprehensive engineering reviews for existing and new parts, and a range of secondary services, we are fully committed to a partnership with each of our customers.

To learn more about our custom tooling services, ​view our videos for an overview of our metal stamping die maintenance process, as well as our metal stamping, die design, and machining processes. If you are interested in learning more about our custom tooling and fabricating services, contact us ​today.


Tooling ServicesTooling Services at Manor ToolTooling ServicesTooling ServicesTooling

Request a Quote

Tooling Specifications

Industry Focus:
  • Aerospace
    Consumer Goods
  • Energy
Metal Stamping Dies:
  • Blanking Dies
    Coining Dies/Swage
    Compound Dies
    Forming Dies
  • Piercing Dies
    Progressive Dies
    Secondary Dies
    Draw Dies
Tool Manufacturing Capabilities:
  • In-House Die Design
    Advanced In-Die Tapping
    Auto Threading Wire EDM
    CNC Machining
    Die Design and Development
  • Laser Cutting
    Reverse Engineering
    State-of-the-art Die Protection Capabilities
    Water Jet Cutting
Tooling Die Features Available:
  • Inserted Cutting Details
    High-Speed Metals
    Guided Details
  • In Press Removable Details
    Sensor Automation
Intended Application:
  • Shafts
  • Brackets
    Motor Housings
Tolerance (+/-):
  • Straightness: ± .0005 in
Tooling Die Length:
  • Max
    80 in
    2032 mm
Tooling Die Width:
  • Max
    35 in
    889 mm
Maximum Part Weight/Maximum Lifting Capacity:
  • 6,000 lbs
    1500 lbs Part
    8000 lbs Max Lift
Materials (Metals):
  • Alloy Steels
    Carbon Steel
  • Composites
    Stainless Steel
  • In-House Fixtures & Tooling
  • Composites
    Stainless Steel
Equipment Capabilities
  • CNC Machining Capabilities
    CNC Lathe
  • CAD Design Services
    CAM Programming
    Reverse Engineering
  • Machine Type
    HAAS TL-2
    HAAS TM-3
    (2) Radial Drill Press
    (6) Surface Grinder
    Optical Comparator
    Pedestal Grinders
    #2 Moore-Jig Grinder
    (6) Vertical Mills
    Sand Blaster
    Speed Lathes
    Screw Press
    3 Ton
    (4) 2 Ton
    Heat Oven
    Water Grinders
    Belt Sander Vertical
    Quantum CNC Machining Center #Q-200V
    Okuma High-Speed CNC Machining Center (15,000 RPM)
    Mattison Surface Grinder
    Mitsubishi Wire EDM #FA20S
    (2) CNC Bridgeport E-Z Trak Milling Machine
    Bridgeport w/Readout
    Moore #3 Jig Grinder
    (4) 6 x 12 Okamoto Surface Grinders
    (5) Small Squaring Mill w/Vice Cincinnati
    (4) Donau #DR-32 Radial Drill Press (Medium size)
    (2) Regular Fosdick Drill Presses
    2 Ton Bridge Crane
    ½ Ton Jib Crane
  • Size (Tonnage)50″ x 26″ x 26″
    16″ x 48″
    40″ x 20″
    6″ x 12″
    14″2HP65 Ton
    3 Ton
    (4) 2 Ton
    12″ X 18″
    12″ X 24″
    16″ X 32″

    Travel 35″ x 80″

    Travel 18″ x 72″
    Travel x= 19″; y= 13″

Stocking Programs
  • Dock to Stock
  • Kanban
Production Volume
  • Prototype to High Volume
Lead Times Available
  • Quoted on job by job basis
    Rush Services Available
Industry Standards
  • ISO
    International Organization for Standardization
    ISO 9001:2015
    International Traffic in Arms Regulations (Compliant)
    Military Specifications
    Pressure Equipment Directive
    Restriction Of Hazardous Substances (Compliant)
File Formats
  • AutoCAD (DWG)
    Drawing Interchange Format, or Drawing Exchange Format
    Initial Graphics Exchange Specification, ANSI file format.
    JPG or JPEG
    Joint Photographic Experts Group
    MasterCam (MC10 & UP)
    Portable Document Format
    STEP Standard for the Exchange of Product Model Data
    Tagged Image File Format
    Unigraphics (PRT)

View Portfolio
