Metal Stamped Parts for OEMs in the Automotive Industry

The automotive sector is evolving rapidly, and so is the demand for high-quality, precision-engineered OEM automotive components. Specializing in aftermarket, custom, and niche automotive applications, Manor Tool & Manufacturing Company provides innovative metal stamping, prototyping, and contract manufacturing services. Our ISO 9001:2015 certification demonstrates our unwavering commitment to quality in everything we do.

Learn more about our automotive metal stamping capabilities within the OEM space, including the common applications for our end products.

Manor Tool’s Automotive OEM Metal Stamping Capabilities

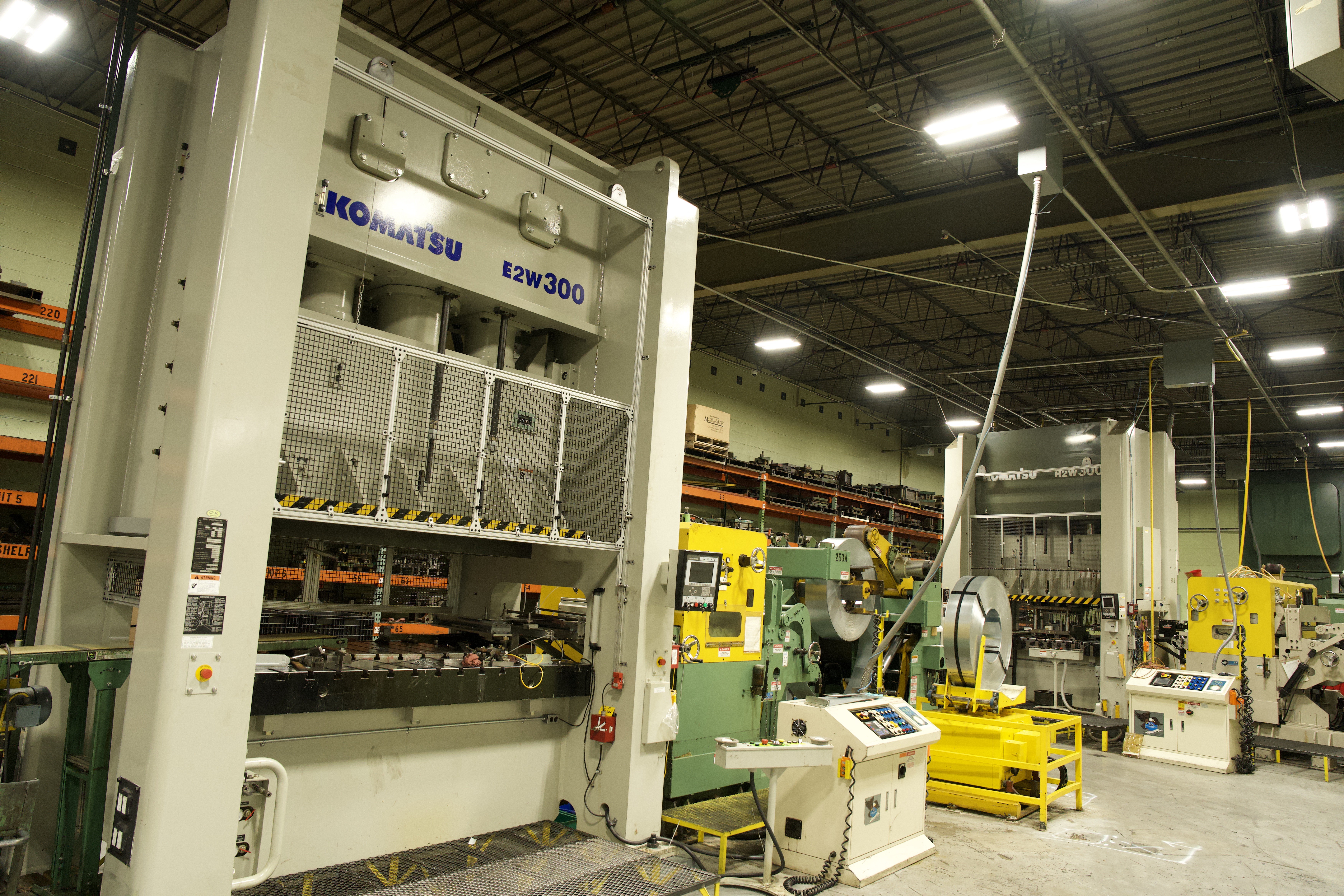

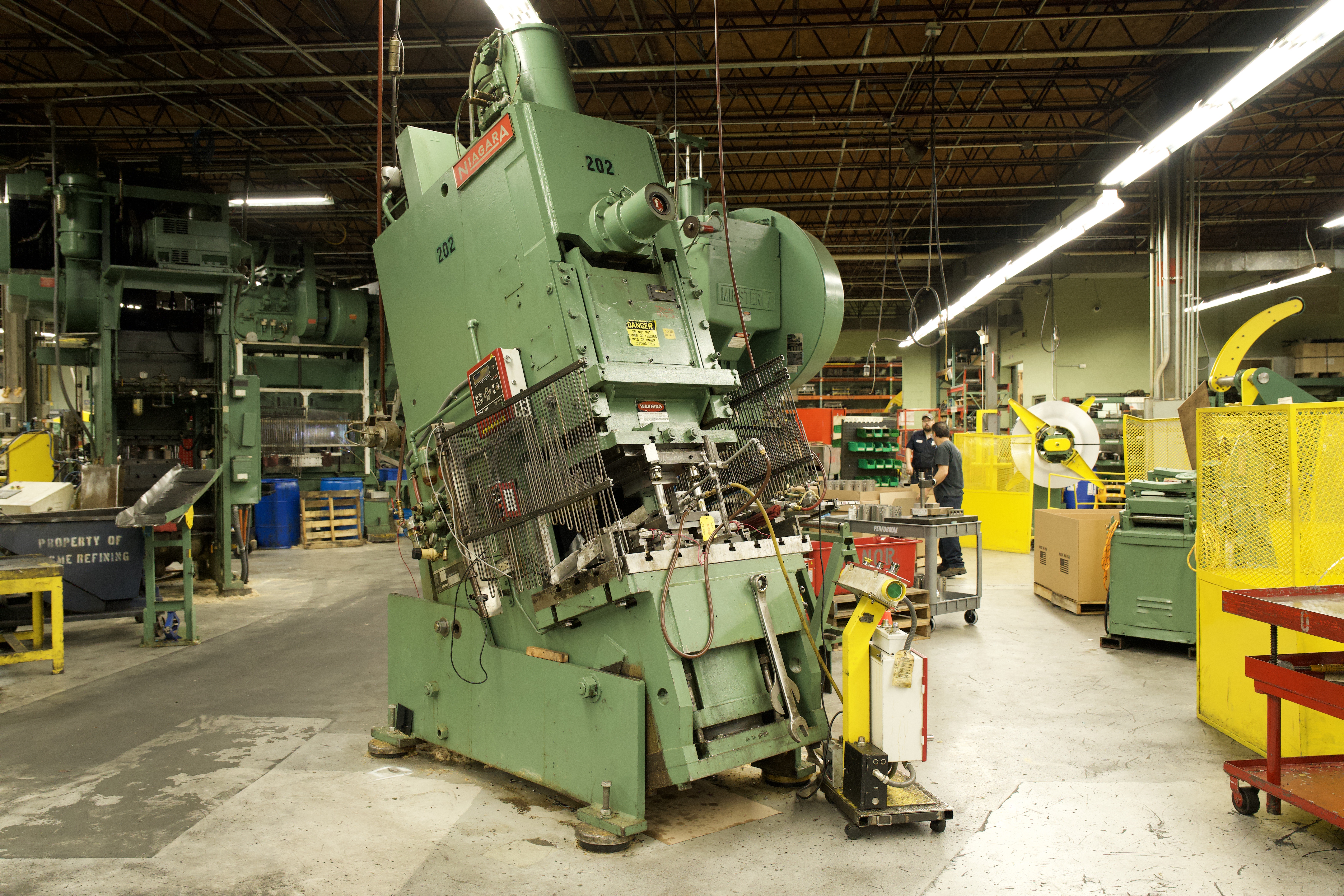

At the heart of our operations is a comprehensive suite of metal stamping capabilities, engineered to address the complex needs of OEMs in the automotive industry. We create precision metal stampings, assemblies, and sub-assemblies in medium- to high-volume production quantities. Our maximum press rating goes up to 400 tons, and a diverse equipment line enables us to tailor our services to the unique needs of our customers.

Examples of Custom Automotive Stamped Parts Manufactured

Steel Dimpled Annular

Manor Tool creates a variety of custom automotive stamped parts, including brackets, catalytic converter components, structural parts, and exhaust components. For one of our customers, we produced a 4” steel dimpled annular, an exhaust component, using our progressive die stamping capabilities. Our precision tooling was able to achieve tight tolerances of ±0.002”, and we now produce 12,000 parts per year for this customer.

Stamping Materials

Manor Tool works with a diverse array of materials to fulfill the varied needs of OEMS in the automotive industry, prioritizing each material for its unique properties and application suitability. Depending on the type of material, we can stamp workpieces with thicknesses ranging from 0.005” to 0.500”. Here is an overview of the most common metal materials we use and their applications:

  • Aluminum: Favored for its formable, lightweight, and corrosion-resistant attributes, aluminum is predominantly used in automotive brackets.
  • Brass: Brass is popular for its corrosion resistance and electrical conductivity, ideal for creating fittings.
  • Carbon steel: Known for its strength and cost-effectiveness, carbon steel is widely used in structural components and brackets.
  • Stainless steel: With exceptional corrosion resistance and strength, stainless steel is chosen for exhaust parts and trim pieces.
  • Nickel alloys: Known for their robust strength and heat resistance, nickel alloys are selected for high-performance applications.

We also stamp automotive components using the following materials:

  • Beryllium Copper
  • Copper
  • Magnesium
  • Nickel
  • Plastics
  • Phenolic

Additional Services Provided

In addition to automotive stamping for OEMs, Manor Tool offers a comprehensive suite of additional services to meet your specific needs:

  • Assembly
  • Consulting
  • Deburring
  • Design
  • Heat Treating
  • Plating
  • Packaging
  • Painting
  • Powder Coating
  • Riveting
  • Stress Relieving
  • Tapping
  • Trimming
  • Welding

Metal Stamping Specifications

Intended Application

  • Appliances
    ATV (All Terrain Vehicles)
    Electric Motors
    Lighting Fixtures
    Networking Equipment
  • Batteries
    Electric Motors
    Lighting Fixtures
    Networking Equipment Door (Automatic/Manual)
    Automotive Aftermarket
    Gaming Industry
    Tube Fabrication

Maximum Press Rating

400 tons

Part Length

48 in
1219.2 mm

Part Width

96 in
2438.4 mm

Part Thickness

.250-.500 in (Depending on application)
6.35-9.525 mm

Fork Lifting Capacity

8,000 lbs

Crane Capacity

6,000 lbs

Tolerance (+/-)

±.0005 in
±.0127 mm

Industry Standards

  • ISO
    International Organization for Standardization
    ISO 9001:2015
    International Traffic in Arms Regulations (Compliant)
  • Military Specifications
    Pressure Equipment Directive
    Restriction Of Hazardous Substances (Compliant)

Production Method

  • Coining/Swage
    Compound Die/Blank Through
    Deep Drawn/Form
  • Pierce Die
    Progressive Die

Production Capabilities

  • Complex
    Work with small coils to 15M pound coils
    Flat stock
    Automatic high-speed presses and feedlines
    Single stroke secondary and hand fed operations
    Experienced with obtaining and/or maintaining the cosmetic appearance of your parts.
    Press Room Equipment List (PDF – 599KB)

Production Volume

1 unit
Prototype and short run to medium and high volume

Monitoring and Control Equipment

  • Infrared Retro-Reflective Lasers
    Fiber Optics
    Load Tonnage Monitors
  • Proximity Sensors
    Various Types of Die Protection Equipment

Stamping Features

  • Coated
    Stretch Formed
    Contour Formed
    Cold Form
  • Embossed
    Heat Treated
    In Die Tapping

File Formats

  • AutoCAD (DWG)
    Drawing Interchange Format, or Drawing Exchange Format
    Initial Graphics Exchange Specification, ANSI file format.
    JPG or JPEG
    Joint Photographic Experts Group
    MasterCam (MC10 & UP)
    Portable Document Format
    STEP Standard for the Exchange of Product Model Data
    Tagged Image File Format
    Unigraphics (PRT)

The Benefits of Partnering with Manor Tool for Stamped Auto Parts

Partnering with Manor Tool for automotive stamping gives customers a host of benefits. Our experienced team, bolstered by state-of-the-art equipment, ensures that each component produced meets the highest standards of quality for your industry or application. As a one-stop shop, Manor Tool seamlessly manages every project phase, from stamping to final assembly. Our efficiency and volume flexibility allow us to offer highly competitive prices.

In addition, Manor Tool collaborates closely with customers to refine existing parts and develop new products. Our rapid prototyping capabilities and on-time deliveries result in faster time to market.

Precision Metal StampingsMetal AssembliesStamped Metal Parts

Contact Our Experts for Premium Automotive Metal Stamping Solutions

Manor Tool & Manufacturing Company is dedicated to providing the automotive industry with high-quality, precision-engineered stamped aftermarket and custom parts. Our commitment to quality, combined with our comprehensive capabilities, makes us a trusted partner for all your automotive stamping needs. Contact us today or request a quote to discover how we can support your project with expert solutions.
