Progressive Die Stamping Services

At Manor Tool and Manufacturing Company, progressive die stamping is more than just one of our many diverse capabilities; it’s one of our specialties. Our progressive die manufacturing capability uniquely highlights our commitment to our customer’s growth and process development, removes the burdens of procurement, and ultimately lowers operating costs.

Progressive die stamping allows us to adapt to the growth and evolution of our customers’ products. An existing part run may utilize our press brakes or turret press for shorter runs, but if the demand for that part increases, those processes at higher volumes may end up being too costly for the customer. Progressive die stamping enables us to provide a seamless transition to high volume runs, with built-in quality control.

What is Progressive Die Stamping?

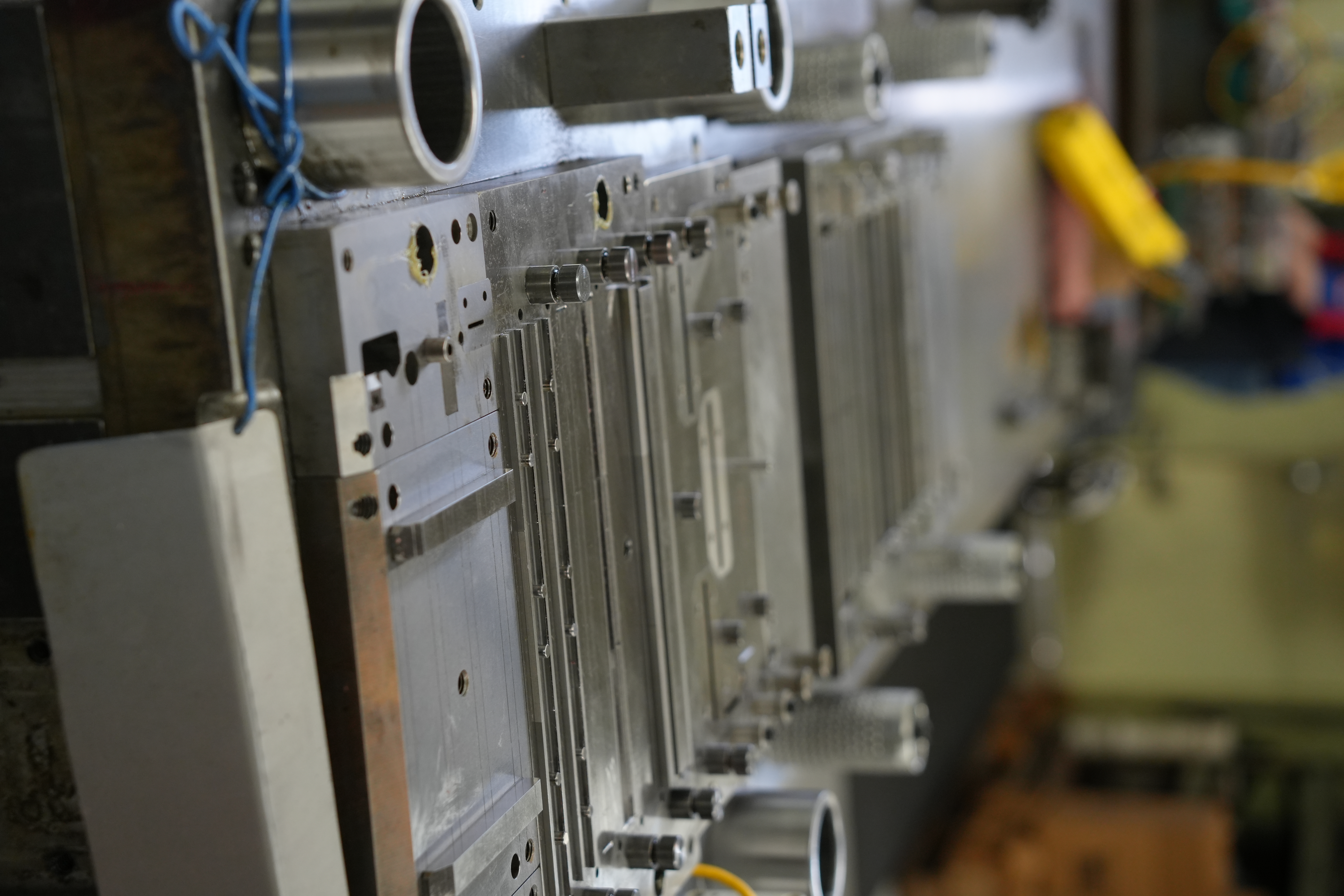

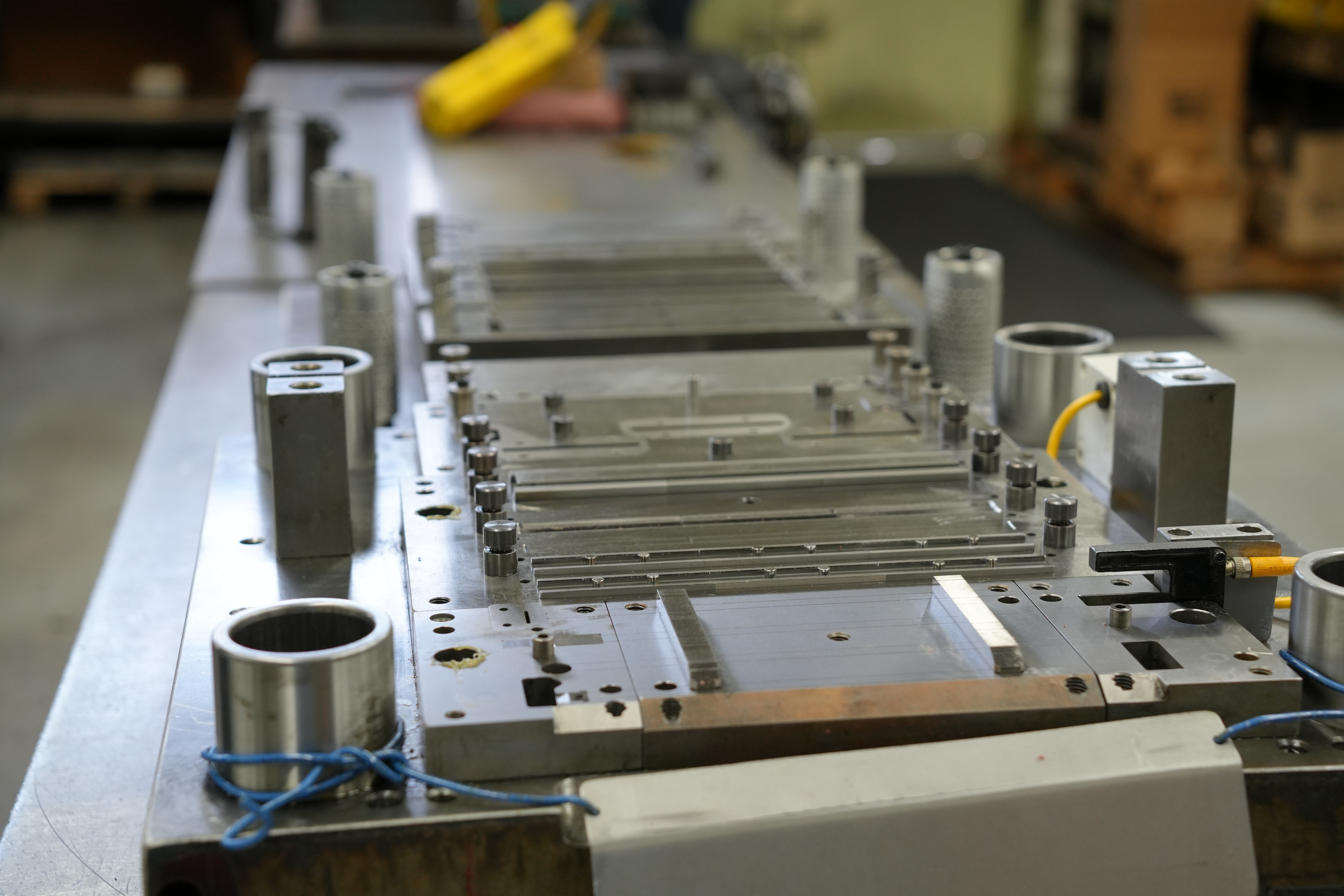

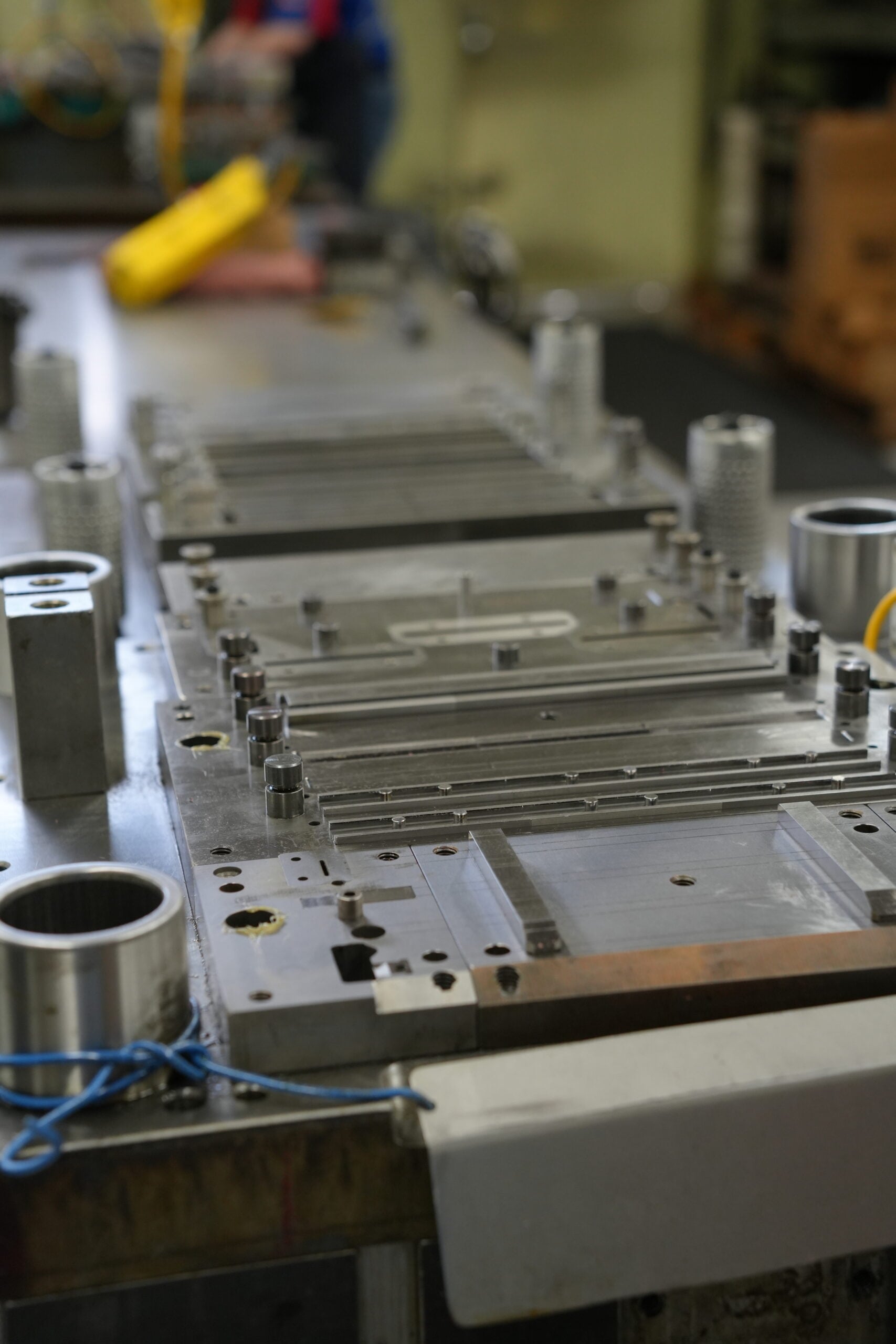

Progressive die stamping is a metal stamping process that requires several workstations to perform different operations on the same part. The operations do not occur simultaneously. Instead, a part in progress must be carried by a stock strip through each station until the part is completed. Progressive die stamping presents a number of benefits compared to similar processes, such as quick set-up, exceptional production speed, and control over part location throughout the stamping process.

A wide variety of industries rely on progressive die stamping for the production of critical parts and components. Some of these include:

  • Agriculture
  • Appliances
  • Automotive
  • Construction
  • Electronics
  • Medical
  • Plumbing

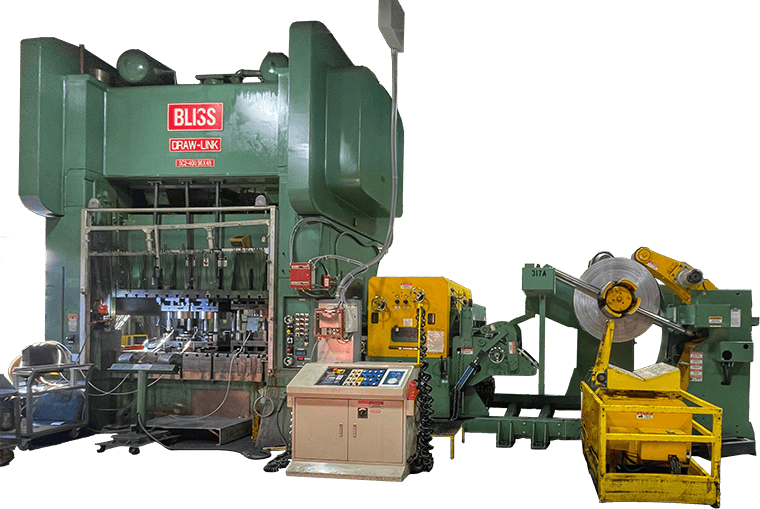

Our progressive die process performs incremental changes to the part as it passes each station and sends the completed part down a product chute for packaging at the end. We use highly advanced stamping presses with capacities from 22–400 tons, achieving tolerances of ±0.0005″. A wide range of materials can be utilized from thicknesses of 0.005″ to 0.500″, such as aluminum, stainless steel, copper, nickel, and brass. The automatic servo material feeders and arbors we utilize can handle material up to 35″ wide for dies up to 96″ in length.

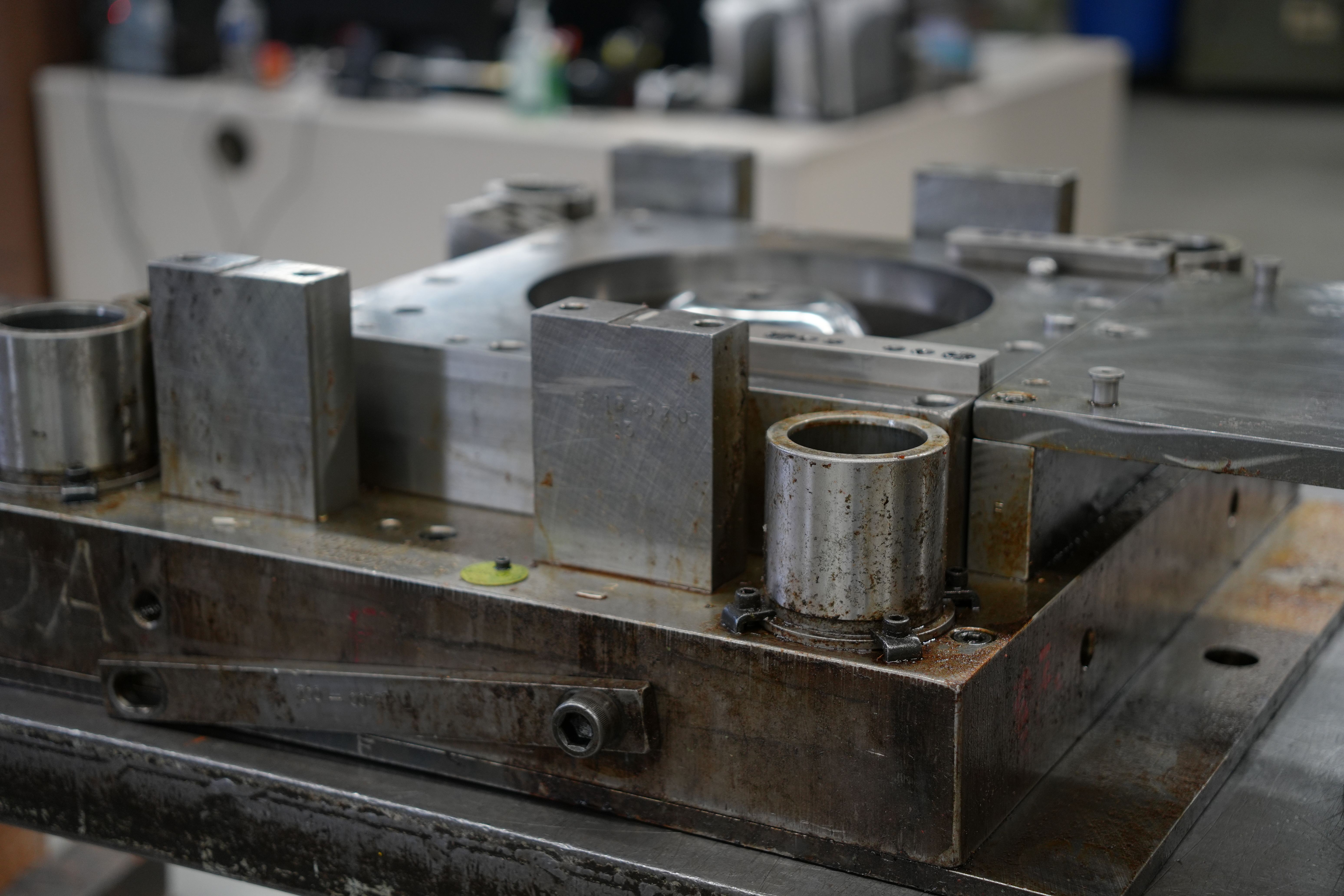

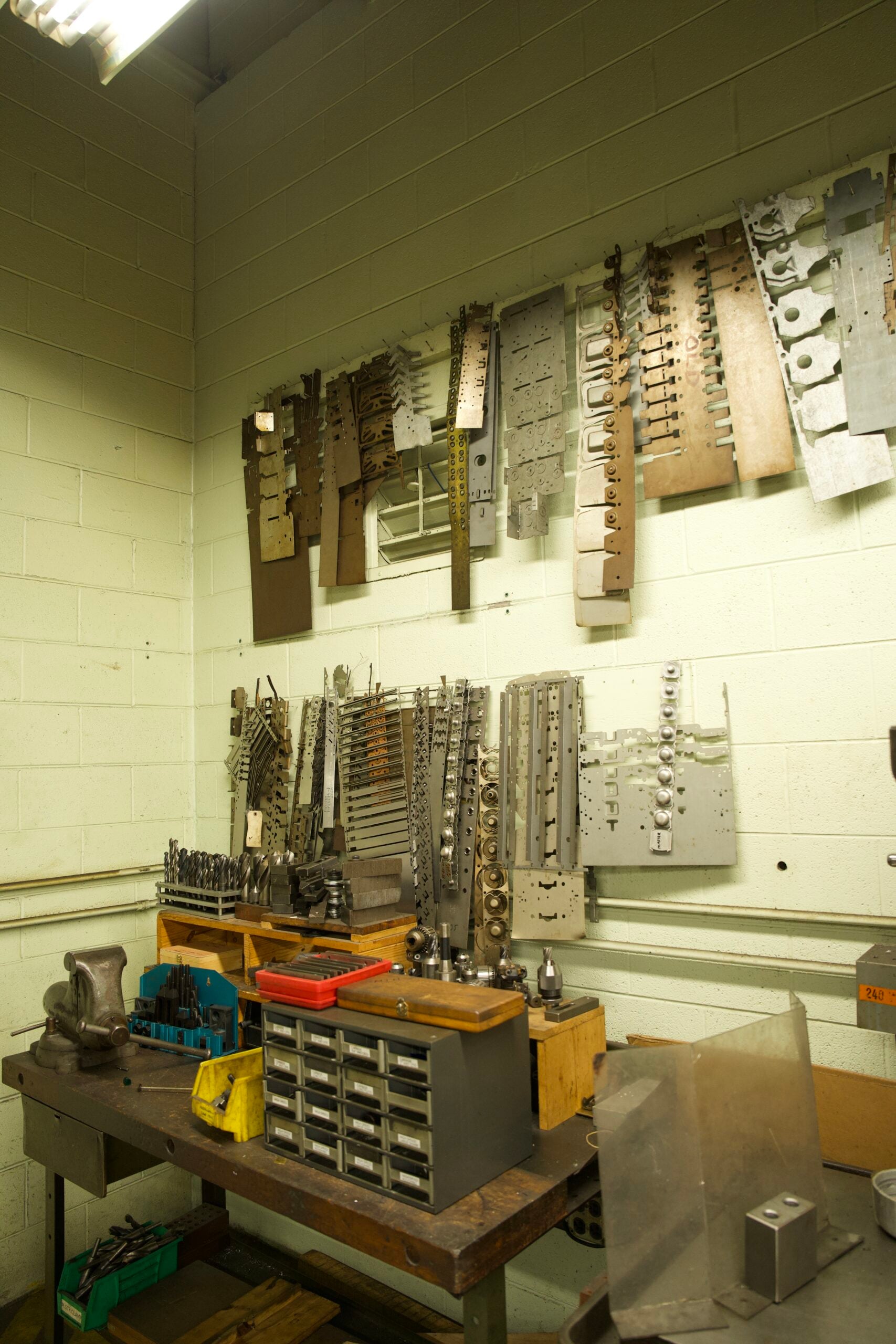

The dies we use are customer-owned and range from simple to complex, with features such as in-process tapping capability or coining. Dies are all designed, maintained, and inventoried in-house. Our engineers develop custom die tooling for our precision metal stamping services using our AutoCAD & Unigraphics software, or MASTERCAM software for CNC machining and wire EDM.

Stamping Services at Manor Tool

Our expertise and capabilities in stamping are easy to see. Our history of innovation within this field has allows us to help our clients produce superior parts with minimal error rates using technologies such as in-die tapping and 400-ton press stamping.

If you’d like to learn more about our experience, check out some of our past projects such as:

Each of these projects highlights a unique set of capabilities that our team employed during production. Our services can be tailored to meet the needs of virtually any application in any industry. We learn unique lessons with every project that enable us to further advance our progressive die stamping processes.

Manor Tool’s Progressive Die Stamping Services

We have a strong commitment to responsiveness, flexibility, and creativity in the development and delivery of solutions. Our team will review your application from prototype to high-volume production, and develop a manufacturing process that is forward-thinking and provides a cost-effective course of action while being prepared for future growth. Our full portfolio of services— from engineering design and manufacturing to secondary services and quality inspections—are instrumental in our total commitment to our customer’s needs.

Contact us today to learn more about progressive die stamping or other capabilities and services.





Precision Metal StampingsMetal AssembliesStamped Metal Parts

Request a Quote

Die Stamping Specifications

General Capabilities:
  • Contract Manufacturing
  • Prototype
Industry Focus:
  • Aerospace
    Agricultural
    Automotive
    Appliance
    Communications
    Commercial
    Consumer Goods
    Construction
    Electronics
  • Energy
    Solar
    Wind
    Furniture
    Medical
    Military
    Semiconductor
    Telecommunications
Intended Application:
  • Appliances
    ATV (All Terrain Vehicles)
    Automotive Aftermarket
    Batteries
    Decorative
    Doors
    Electric Motors
    Faucets
  • Lighting Fixtures
    Networking Equipment
    Refrigeration
    Pumps
    Solenoids
    Gaming Industry
    Tube Fabrication
Maximum Press Rating
  • 400 tons
Part Length:
  • Max
    48 in
    1219.2 mm
Part Width:
  • Max
    96 in
    2438.4 mm
Part Thickness:
  • Max
    .250-.500 in (Depending on application)
    6.35-9.525 mm
Fork Lifting Capacity:
  • Max
    8,000 lbs
Crane Capacity
  • Max
    6,000 lbs
Tolerance (+/-):
  • ±.0005 in
    ±.0127 mm
Industry Standards:
  • ISO-International Organization for Standardization
    ISO 9001:2015
    ITAR- International Traffic in Arms Regulations (Compliant)
    Mil-Spec
    Military Specifications
    PED- Pressure Equipment Directive
    RoHS- Restriction Of Hazardous Substances (Compliant)
Production Method:
  • Coining/Swage
    Compound Die/Blank Through
    Deep Drawn/Form
  • Pierce Die
    Progressive Die
Production Capabilities:
  • Complex work with small coils to 15M pound coils
    Flat stock
    Extrusions
    Curling
    Automatic high speed presses and feedlines
    Or
    Single stroke secondary and hand fed operations
    Experienced with obtaining and/or maintaining the cosmetic appearance of your parts.
Production Volume:
  • Min
    1 unit
    Prototype and short run to medium and high volume
Monitoring and Control Equipment
  • Infrared Retro-Reflective Lasers
    Fiber Optics
    Load Tonnage Monitors
  • Proximity Sensors
    Cameras
    Various Types of Die Protection Equipment
    Protection Equipment
Materials
  • Aluminum
    Beryllium Copper
    Brass
    Carbon Steel
    Copper
    Leather
    Magnesium
    Nickel
    Nickel Alloy
    Plastics
    Phenolic Kraft Paper
  • Stainless
    Coiled
    Flat Stock
    Extruded
    Thin Material
    Tubing
    Wire
    Coated
    Perforated
    Polished
Stamping Features
  • Coated
    Coining
    Louvered
    Stretch Formed
    Contour Formed
    Cold Form
    Countersunk
  • Embossed
    Enameled
    Flat
    Heat Treated
    Numbering
    Ornamental
    In Die Tapping
Additional Services Provided
  • Assembly
    Consulting
    Networking
    Deburring
    Design
    Heat Treating
    Plating
    Packaging
  • Painting
    Powder Coating
    Riveting
    Stress Relieving
    Tapping
    Trimming
    Welding
File Formats
  • AutoCAD (DWG)
    DXF- Drawing Interchange Format, or Drawing Exchange Format
    IGES-Initial Graphics Exchange Specification, ANSI file format.
    JPG or JPEG- Joint Photographic Experts Group
    MasterCam (MC10 & UP)
    PDF- Portable Document Format
    STEP- Standard for the Exchange of Product Model Data
    TIFF- Tagged Image File Format
    Unigraphics (PRT)
